Description



Wireless Dimmer Light Switch with Remote Controls AC110V 220V Dimmable Switch 100M Control for LED and Halogen 10W-150W (No Wifi

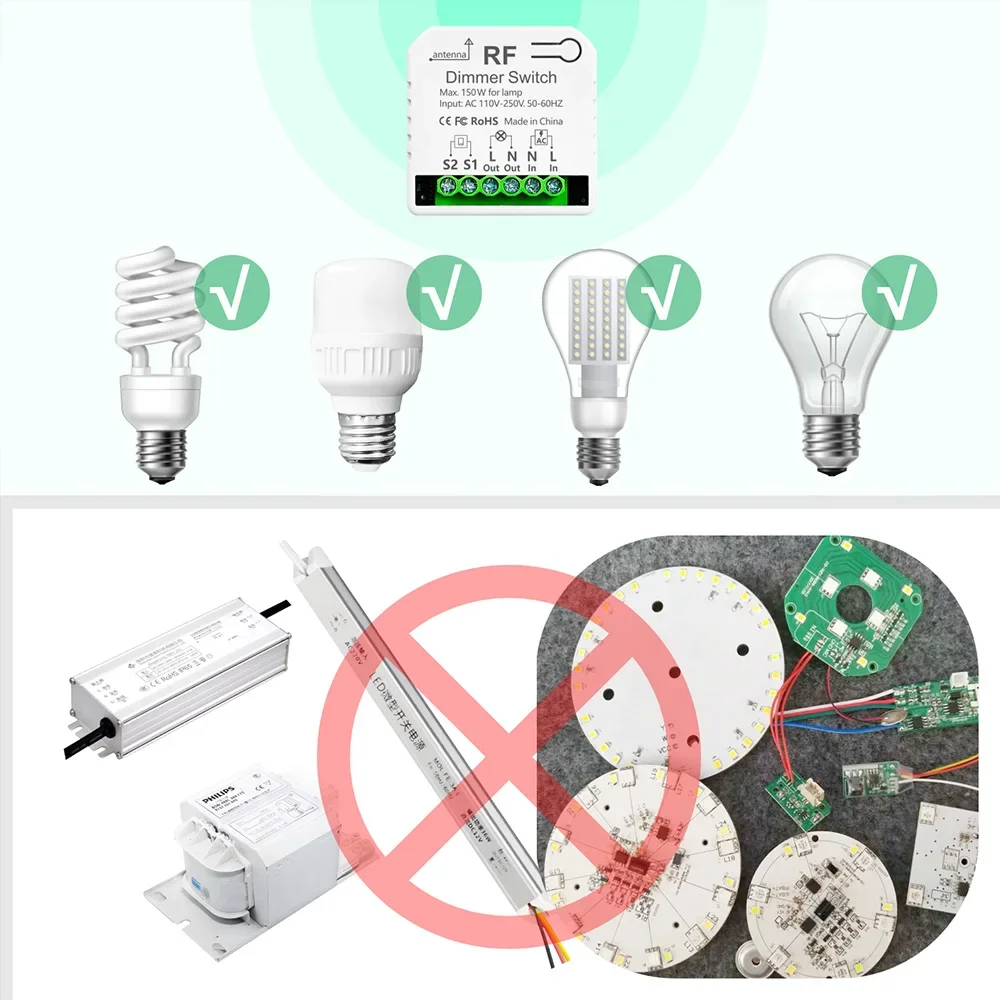

This is an AC100V-250V wireless remote control dimmer set. Without connecting to WIFI, It can be realized: remotely control the turning on and off of the light and adjust the brightness of the light, so that the reset panel switch also has a dimming function.Suitable for use with 10W-150W LED and Halogen.

(Two simple installation methods)
Mini size: 45*45*16. The first installation method: the Dimmer  module has 6 wiring holes, directly connected to dimmer panel button switch. The second installation method: Can also be installed directly LED and Halogen.
(Multiple control modes)

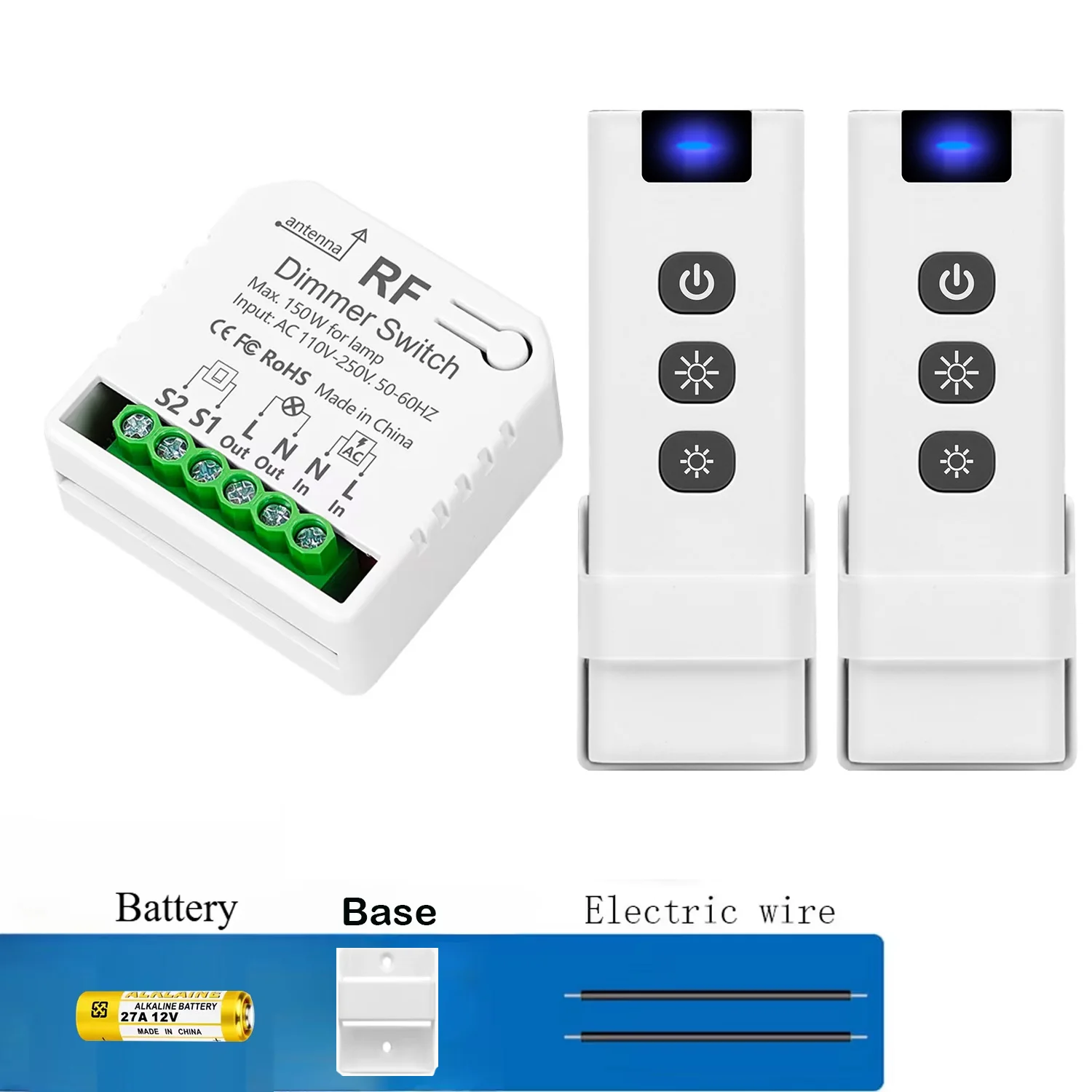

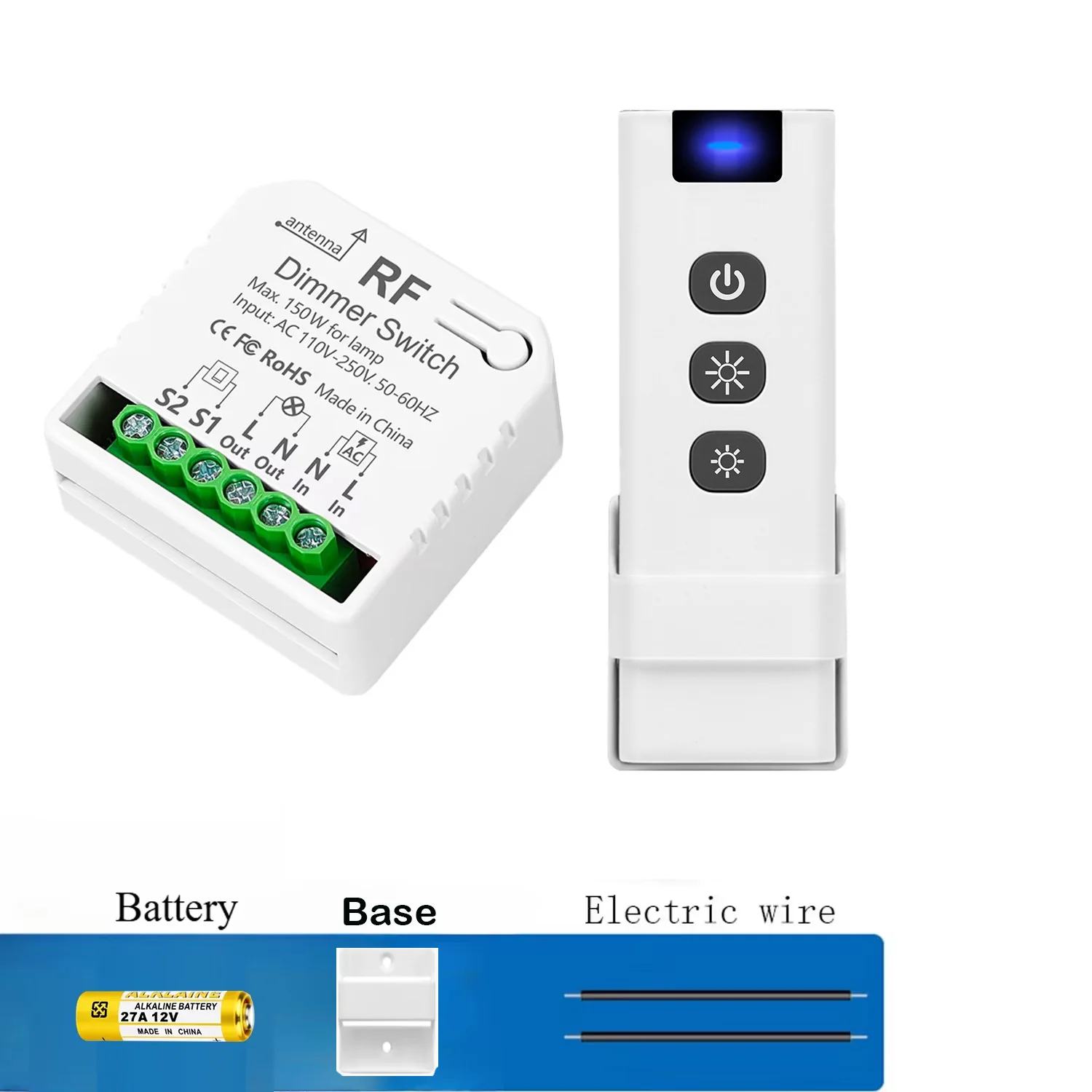

The package product has two types of wireless remote controls. it therefore has 2 control modes: 1- Original Dimmer panel switch control; 2-Wireless panel switch control;
(High quality chip)
TheDimmer Switch Remote control switch signal reception is stable and one switch can control 20 remotes at the same time.

( Achieve remote distance control)
Its remote distance can work more than 50 meters in an empty space.(The wireless remote control switch comes with battery, battery specification: 27A12V)

Configuration of wireless remote control and dimming control module control signals:

How To add the wireless remote control switch:
Press the Dimmer module learning button 1 time,

then Press the wireless remote control button 1 time,Succeed.



How to delete the wireless control signal:
Press the Dimmer module learning button 8 times.(All wireless remote control switch can not control to this receiver module at this time.)

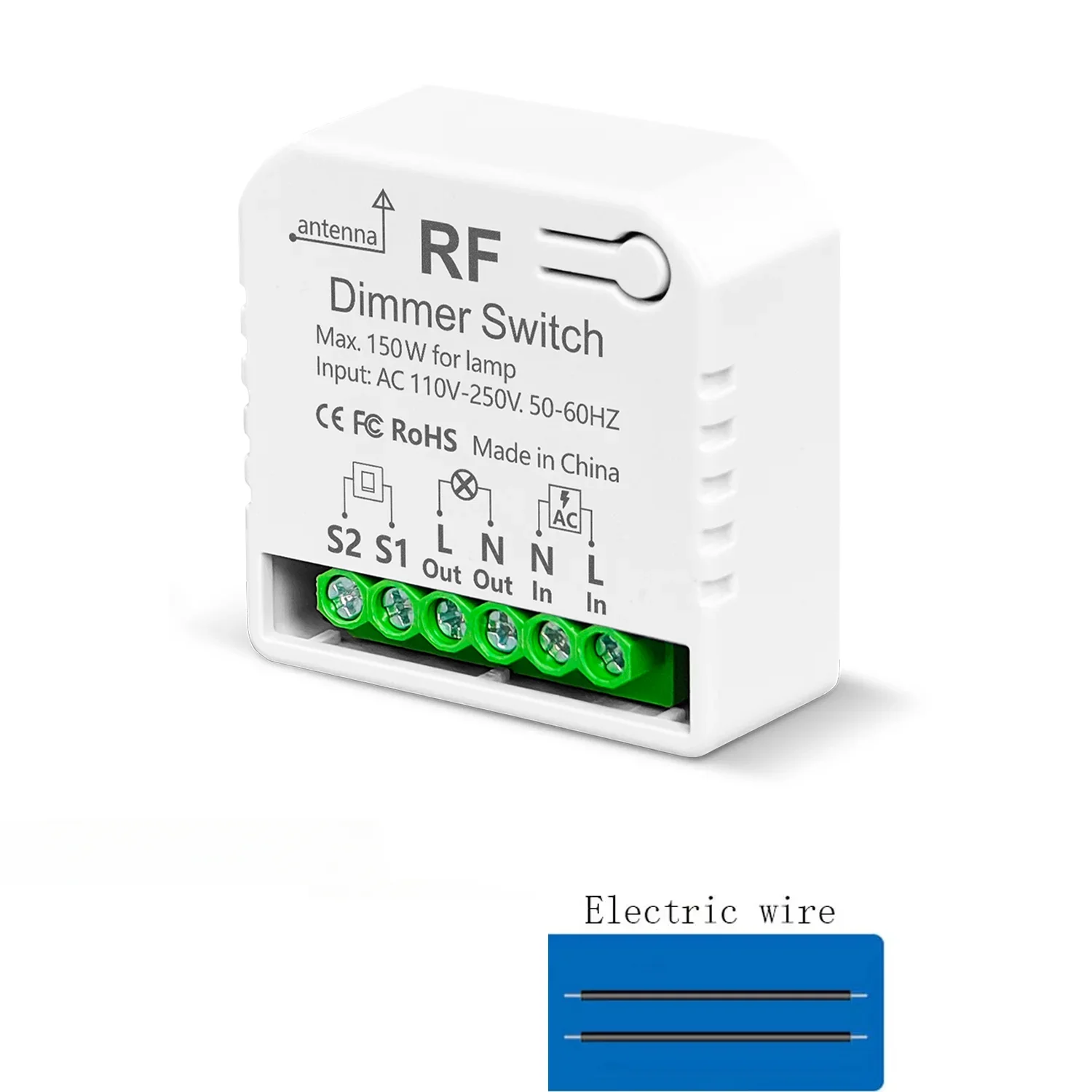

Mini Dimmer Receiver Specifications

  • RF Frequency: 433MHz

  • Size:45*45*16mm

  • Black wire: 2 PCS

  • Input Voltage: AC 110V~250V

  • Number of compatible wireless remote controls: 20

Remote Control Specifications


  • Support encoding : 1527 Leaning code

  • RF Frequency:433Mhz

  • Remote distance : up to 50meters(theoretical distance)

  • Matrerial:Plastic

  • Size: 85*85*7mm

  • Battery:27A 12V*1(Included)




On this product detailed page, there is a demonstration video for your reference.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.



Additional information
Weight 10 lbs
Dimensions 10 in
Brand Name

WenQia
Material

Plastic
Origin

Mainland China
High-concerned chemical

None
Current

10A
Features

AC Led Lamp Dimmer remote control switch
Item Type

SWITCHES
Warranty

1 year
Remote Distance

100 meters
Certification

ce
Model Number

WQ248 Wireless Dimmer Light Switch
Is Smart Device

No
Working Voltage

AC110V~250V
Maximum power

150W
Receiving range

up to 50meters (theoretical distance)
Switch Type

433Mhz Remote Control
Application 1

Light, Fan, LED, Lamps, Security Alarm System and so on
Application 2

DC electric motor
Application location

Family, Home, Factory, Office, Supermarkets and so on
Choice

yes
semi_Choice

yes
