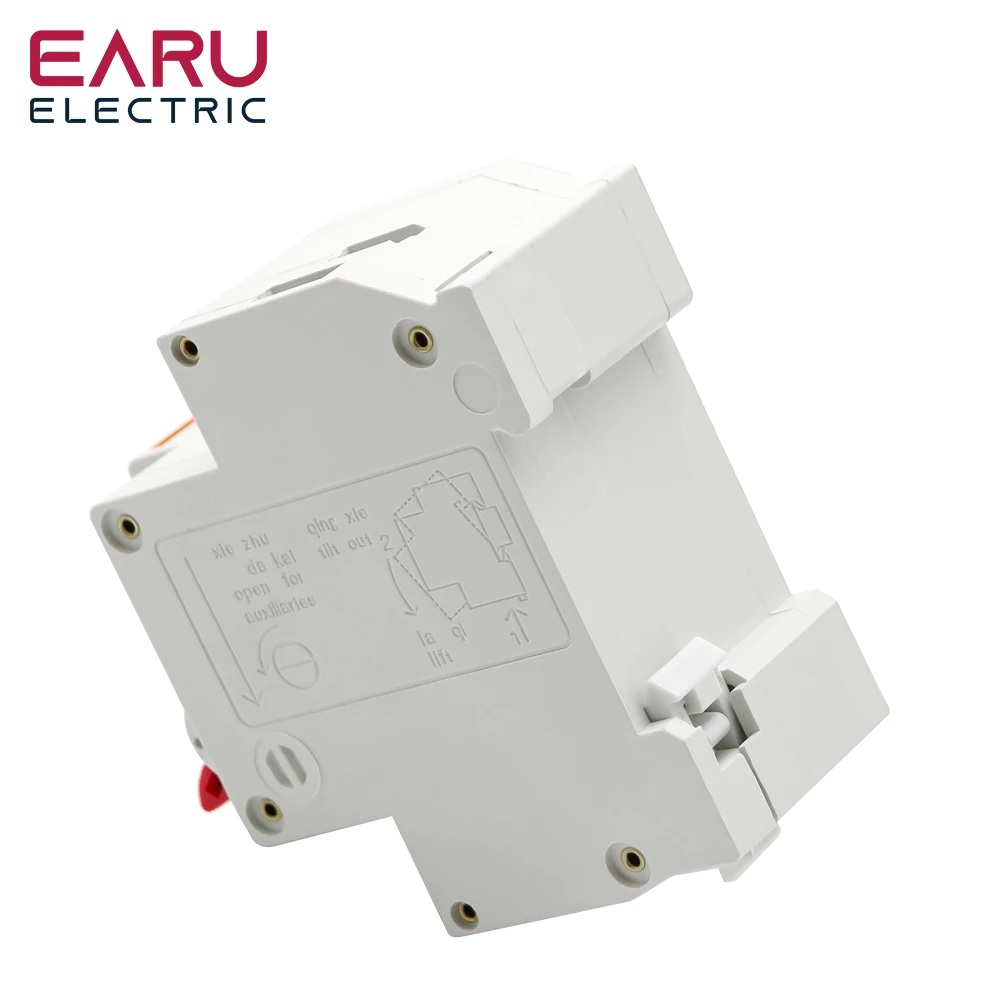

DZ30LE DZ47LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker With Over And Short Current Leakage Protection RCBO MCB 6-63A

Construction and Feature

1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation.

2)Contact position indication.

3)Provides protection against indirect contact by human body.

4)Provides complementary protection against direct contact by human body.

5)Effectively protects electric equipment against insulating failure.

6)Equipped with switched neutral and phase pole .

7)Provides protection against over-voltage.

8)Provides comprehensive protection to household and commercial distribution systems.

Technical Data

9)Type: Electronic type

10)Residual current characteristics: AC

11)Pole No.: 1P+N

12)Tripping curve: C

13)Rated short-circuit capacity: 4.5KA

14)Rated Current(A): 6,10,16,20,25,32,63

15)Rated Voltage:230V AC

16)Rated Frequency:50/60Hz

17)Rated residual operating current(mA): 30 (63A is 15mA)

18)Tripping duration:instantaneous under or equal 0.1s

19)Electro-mechanical: pillar terminal with clamp.

20)Terminal Connection Height: H1=16mm ,H2=21mm

21)Over-votage tripping: 280V±5%

22)Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 .

23)Installation: On symmetrical DIN rail 35mm, Panel mounting

Accessories

24) S2 Shunt Tripper

25) U2+O2 Over-voltage and under-votage tripper.
