Promise
● All product parameters are real data.
● You don’t have to worry about buying products with unsafe and false parameters.
● UL Certificate Number:
20170321-E365423
● CE Certificate Number:
0B181030.SDEQU25
▋ Store promotions :
● The store CODE can be stacked with the full discount event, if your order amount reaches the threshold for using the store CODE, please don’t forget to collect the store CODE and use the store CODE.
● Full Discount will automatically reduce the amount to be paid according to the amount of your order; The store CODE needs to be actively collected and used by you to reduce the amount you need to pay.
● Each store CODE, each ID can only receive one during the campaign period; In the next campaign period, the number of store code pickups will be automatically reset.
▋ Ordering notes :
● Wire length may have 1% error, may be long or short, please understand, thank you!
● For combined purchases, we will ship according to the order quantity. For example, if you buy 30 meters and 20 meters at the same time, you will receive a cable with a length of 30 meters and a cable with a length of 20 meters.
● If you need more quantity, please contact us.
▋ About express delivery :
● Item are shipped within 2 business days once full payment is settled.
● It is suggested to choose the traceable logistics mode, which is safer and faster.
● The weight > 2kg,we may change the mode of transportation according to your country and use other logistics methods with faster and safer timeliness, which does not require you to pay extra.
▋ About after-sales :
● 100% meet CE standard, UL standard, RoHS standard.
● If the goods are lost in the process of logistics transportation, or exceed the specified transportation time, then please contact us, we will refund you the first time to ensure your shopping experience.
● If you have any questions, please contact us, we will help you.
● If you satisfied with us, Please give us Five-Star Feedback!! Thank you 🙂

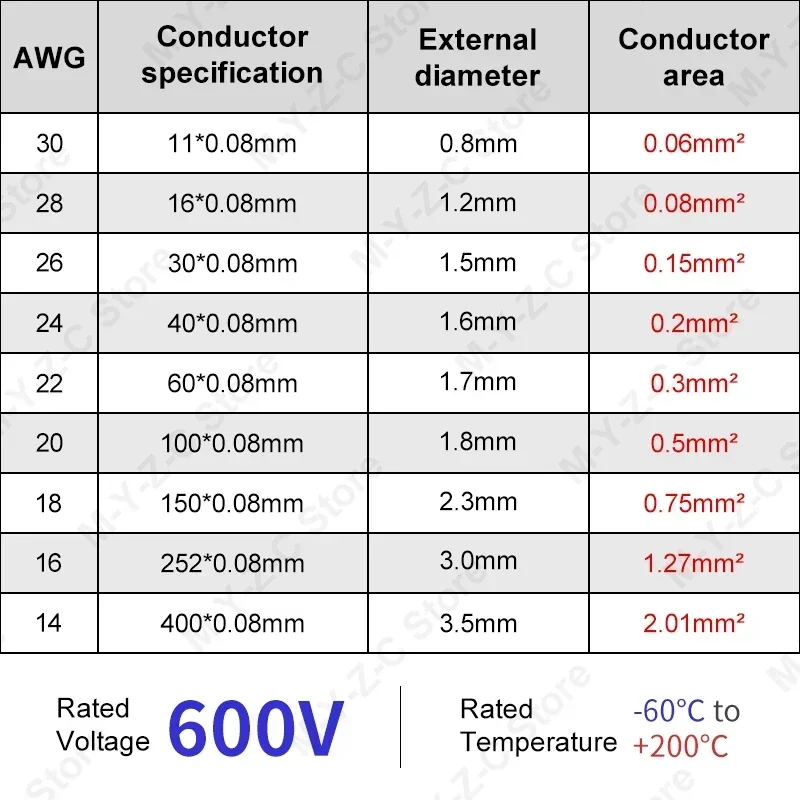

▋ Specification description :
14 AWG
Temperature: -60 degrees to 200 degrees

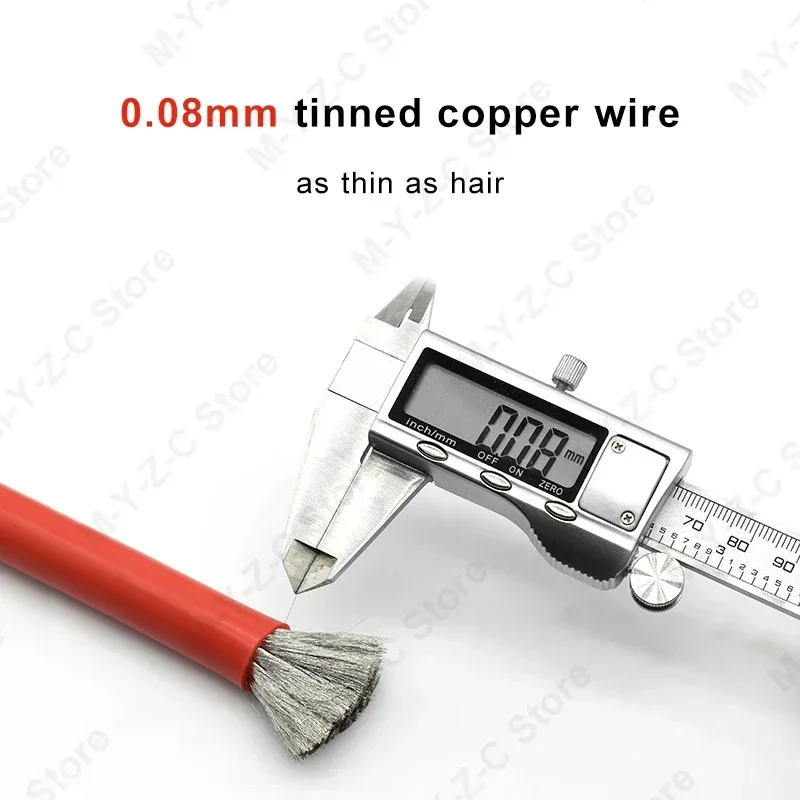

Each copper wire diameter: 0.08mm
Core: 400 shares
Conductor area: 2.01mm²
((0.08 / 2)² * 3.14 * 400=2.01mm²)
Outer diameter: 3.5mm
16 AWG
Temperature: -60 degrees to 200 degrees
Each copper wire diameter: 0.08mm
Core: 252 shares
Conductor area: 1.27mm²
((0.08 / 2)² * 3.14 * 252=1.27mm²)
Outer diameter: 3.0mm
18 AWG
Temperature: -60 degrees to 200 degrees
Each copper wire diameter: 0.08mm
Core: 150 shares
Conductor area: 0.75mm²
((0.08 / 2)² * 3.14 * 150=0.75mm²)
Outer diameter: 2.3mm
20 AWG
Temperature: -60 degrees to 200 degrees
Each copper wire diameter: 0.08mm
Core: 100 shares
Conductor area: 0.5mm²
((0.08 / 2)² * 3.14 * 100=0.5mm²)
Outer diameter: 1.8mm
22 AWG
Temperature: -60 degrees to 200 degrees
Each copper wire diameter: 0.08mm
Core: 60 shares
Conductor area: 0.3mm²
((0.08 / 2)² * 3.14 * 60=0.3mm²)
Outer diameter: 1.7mm
24 AWG
Temperature: -60 degrees to 200 degrees
Each copper wire diameter: 0.08mm
Core: 40 shares
Conductor area: 0.2mm²
((0.08 / 2)² * 3.14 * 40=0.2mm²)
Outer diameter: 1.6mm
26 AWG
Temperature: -60 degrees to 200 degrees
Each copper wire diameter: 0.08mm
Core: 30 shares
Conductor area: 0.15mm²
((0.08 / 2)² * 3.14 * 30=0.15mm²)
Outer diameter: 1.5mm
28 AWG
Temperature: -60 degrees to 200 degrees
Each copper wire diameter: 0.08mm
Core: 16 shares
Conductor area: 0.08mm²
((0.08 / 2)² * 3.14 * 16=0.08mm²)
Outer diameter: 1.3mm
30AWG
Temperature: -60 degrees to 200 degrees
Each copper wire diameter: 0.08mm
Core: 11 shares
Conductor area: 0.06mm²
((0.08 / 2)² * 3.14 * 11=0.06mm²)
Outer diameter: 0.8mm
▋ Product Name

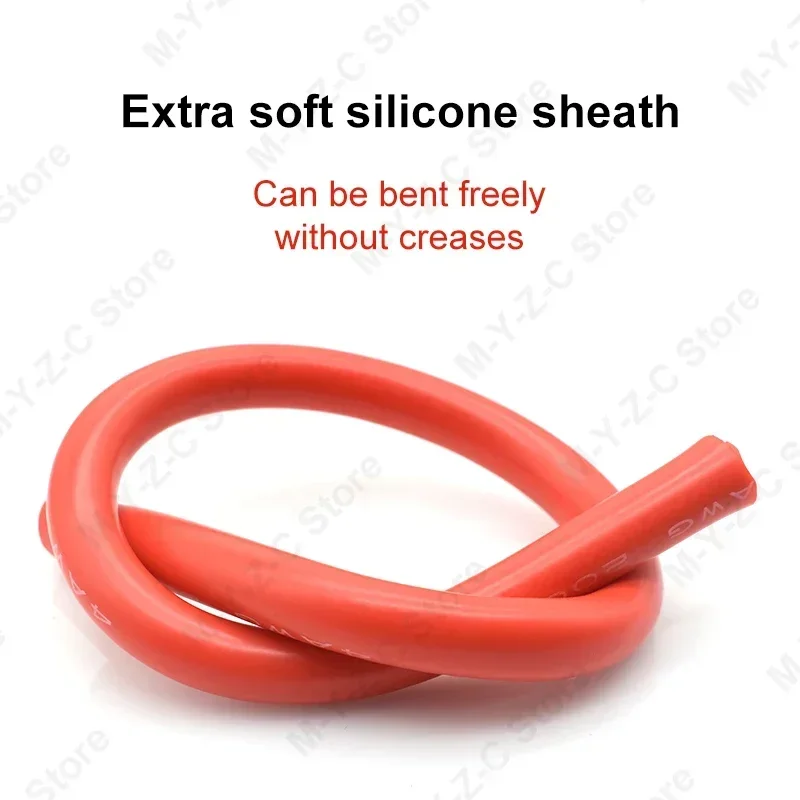

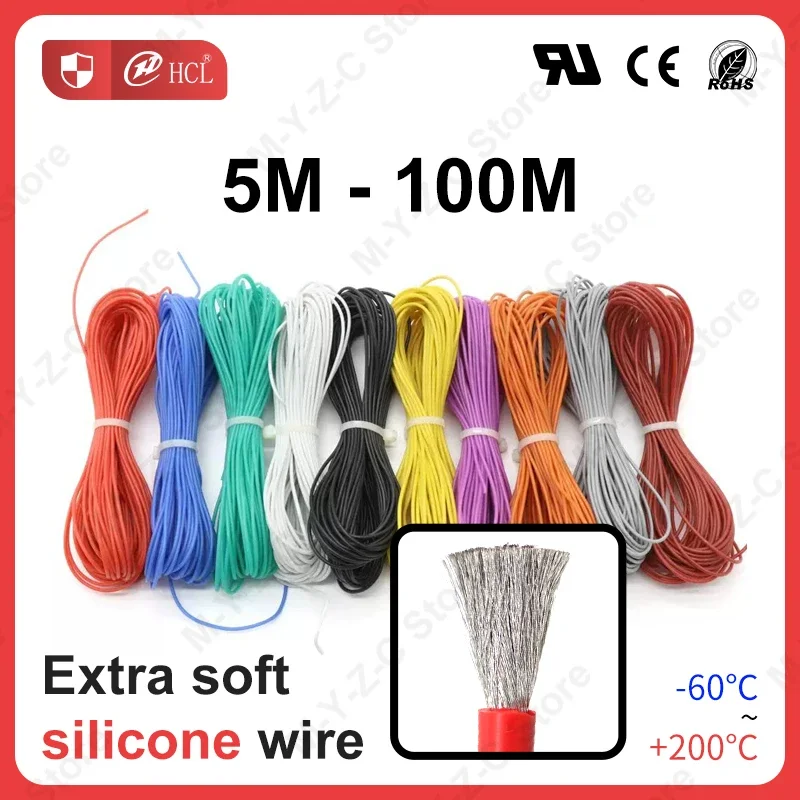

● Extra soft silicone wire
▋ INTRODUCTION
● Specifications : 30/28/26/24/22/20/18/16/14 AWG

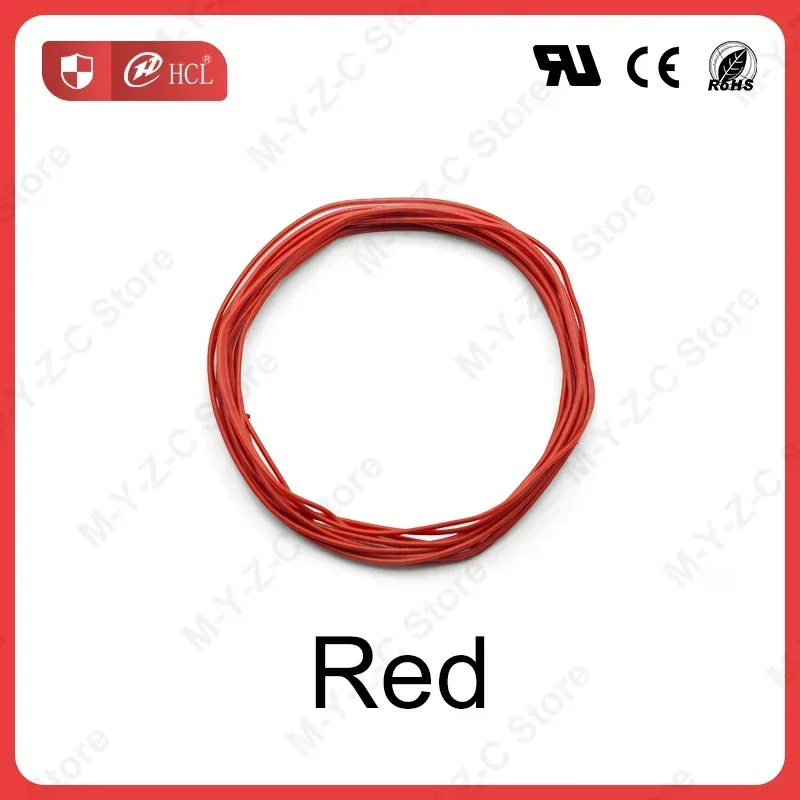

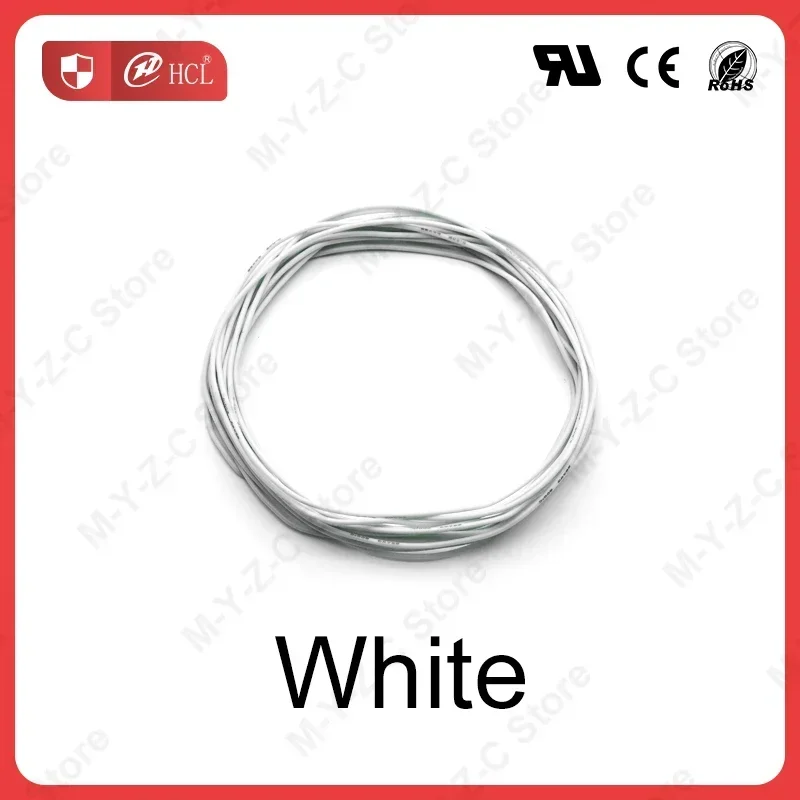

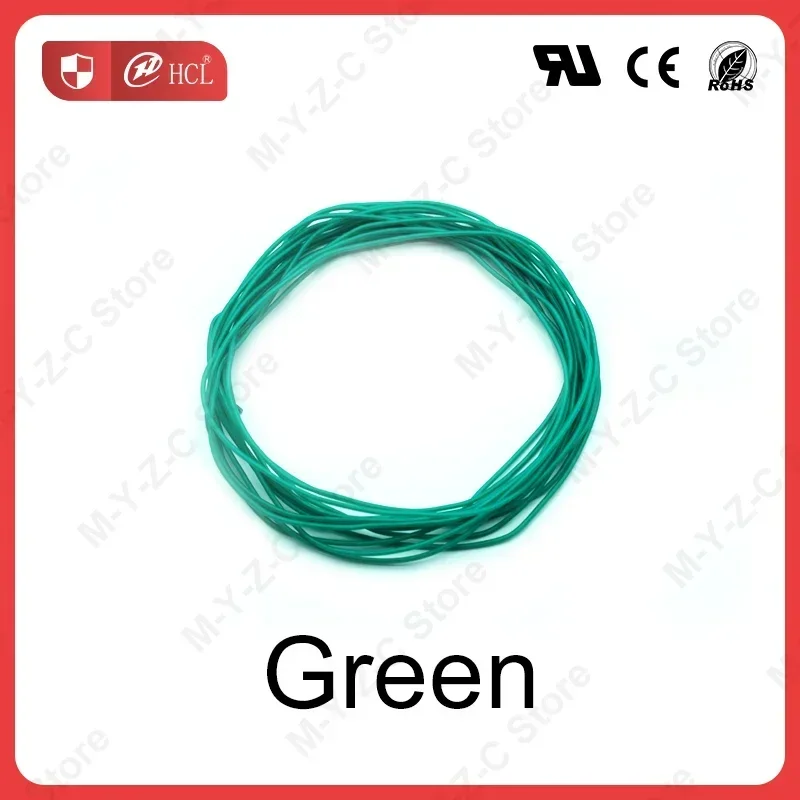

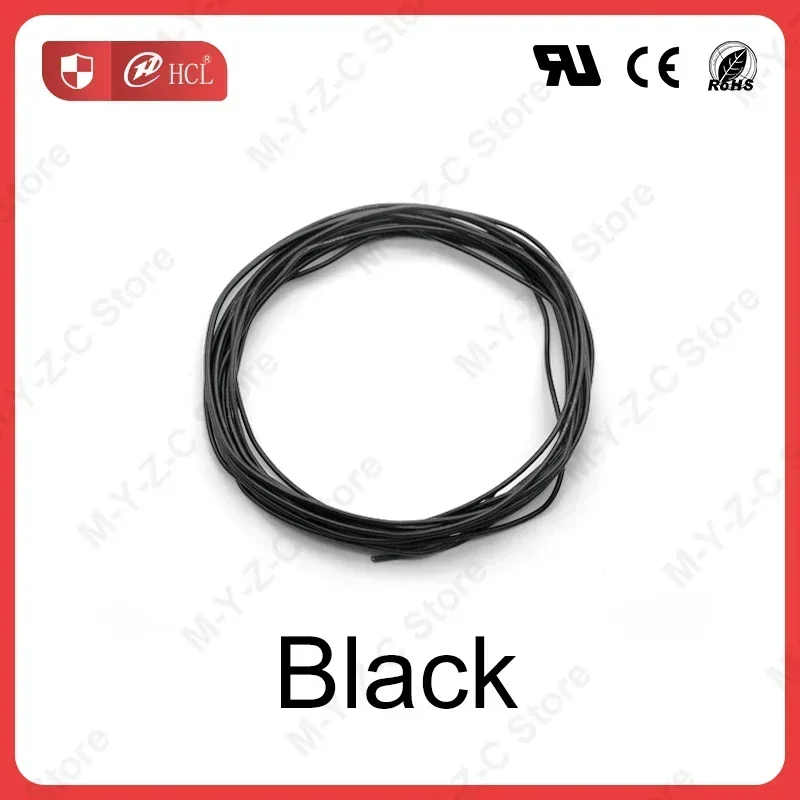

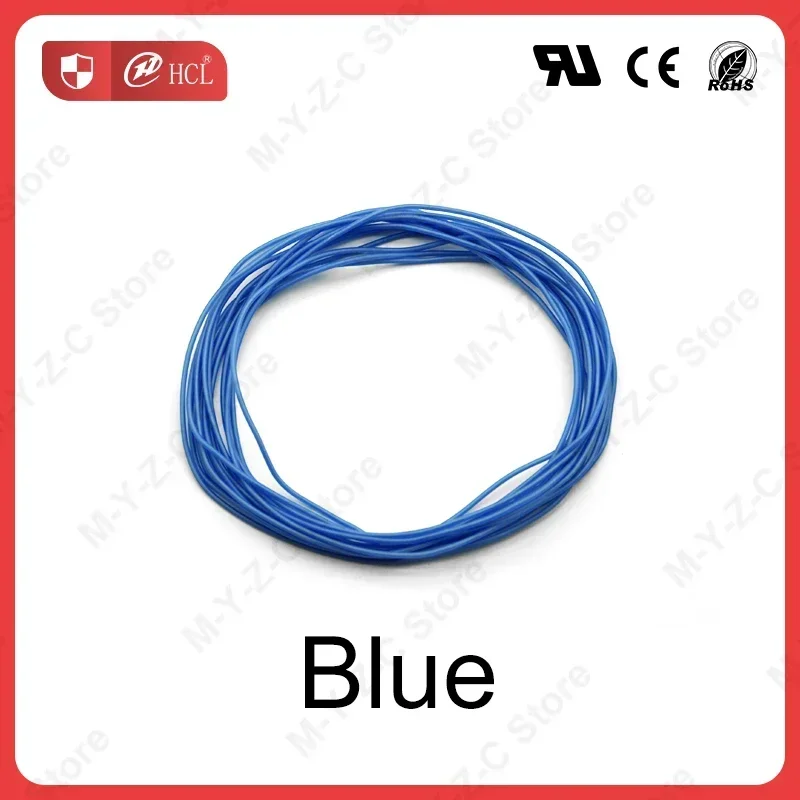

● Product color : Red, Black, Blue, Yellow, Green, White
● Flame retardant grade : VW-1 / FT1
● Certification: UL, RoHS, CE
● Insulation material : Silicone
● Conductor material : Tinned copper wire
● Temperature range : -60℃ ~ +200℃
● Rated voltage : 600V
● Insulator : Silicone
● Cable length: 5m – 16.4ft / 20m – 65.62ft / 50m – 164.04ft / 100m – 328.08ft optional
● Application : This product is widely used in the connection of electronic products, batteries, aircraft model batteries, model wiring harnesses, electrical equipment and internally connected instrument equipment, lamps and motor wires, DIY for home use
▋ Product Application
● UAV
● Automobile
● Inverter
● LED
● Toys/Models
● Widely used in internal connecting wires of electronic products, motors, machine tools, etc

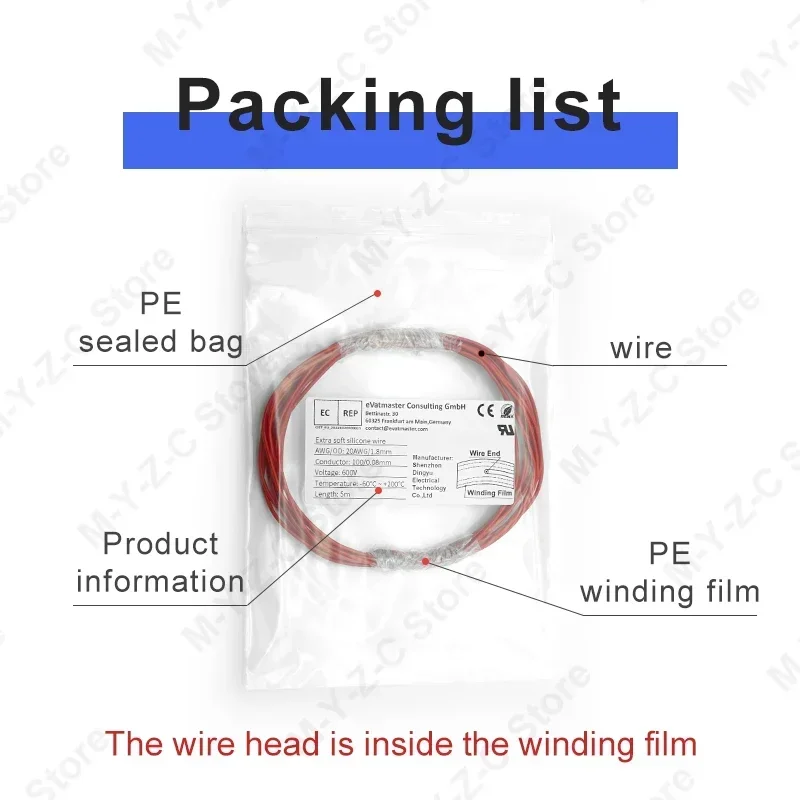

▋ Packing list
● PE sealed bag x 1
● wire x 1
● Product information x 1
● The wire head is inside the winding film
